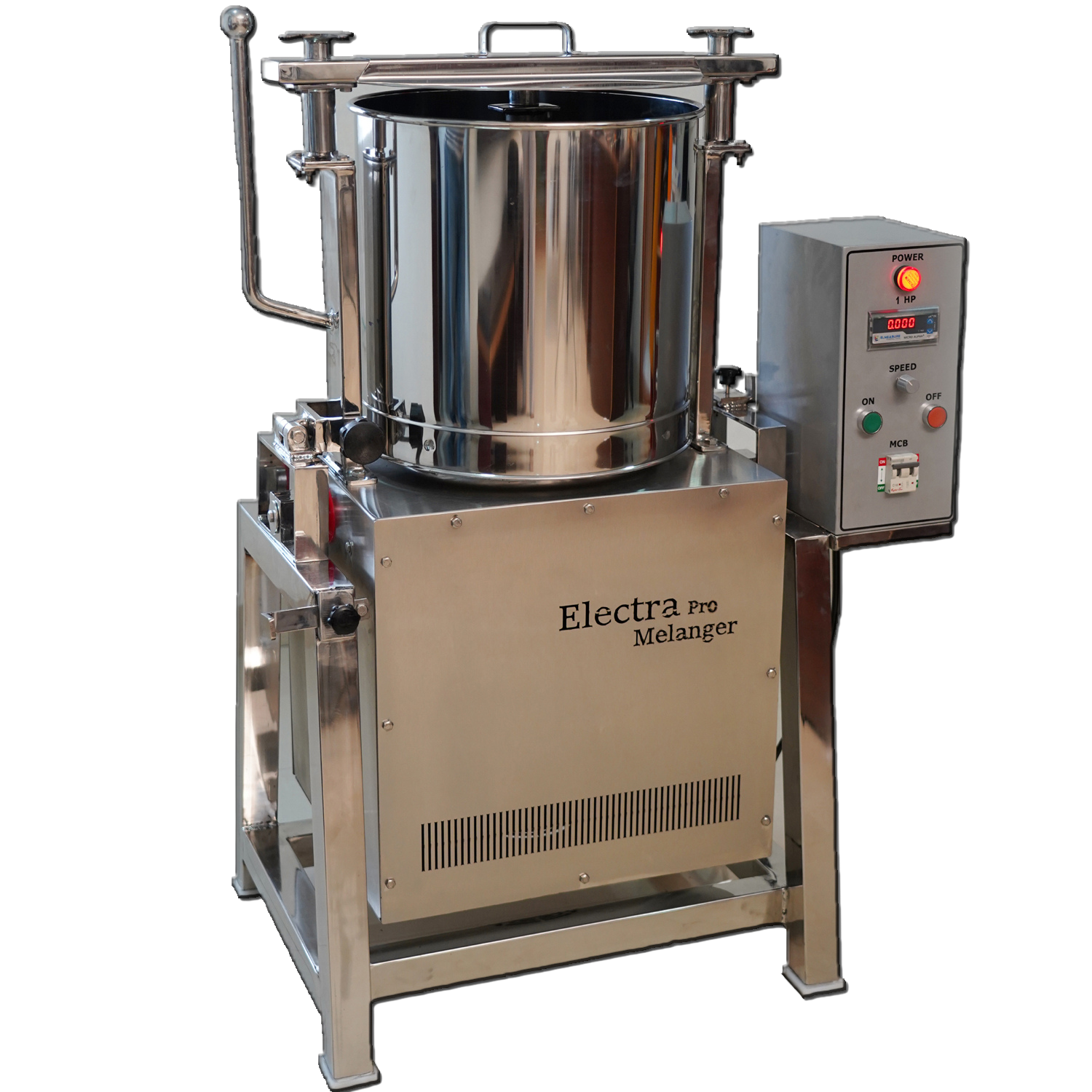

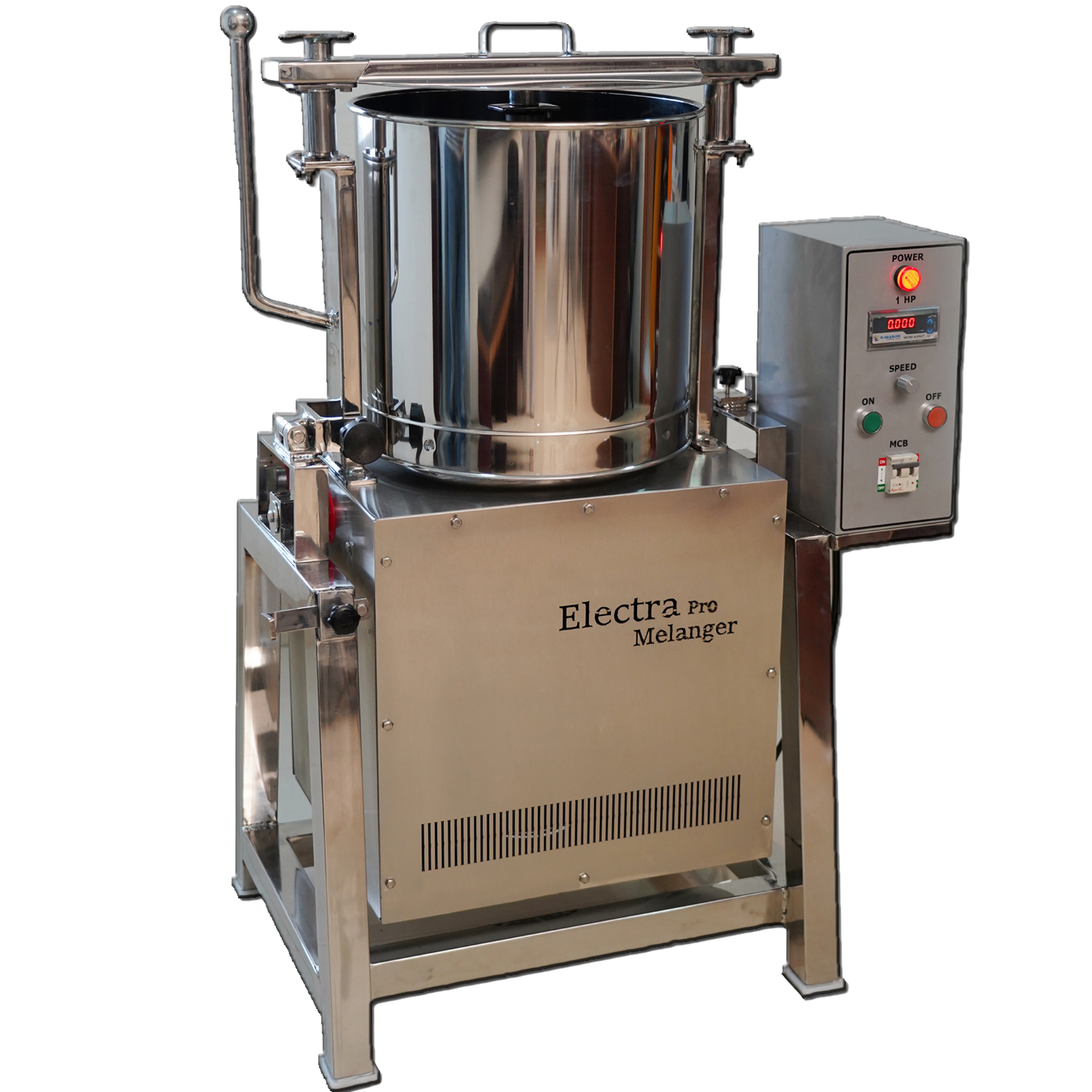

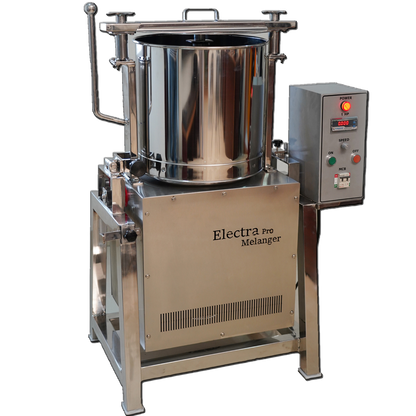

Cocoa Mel 20Kg with Speed Controller

Regular price $4,000.00
Regular price Sale price $4,000.00
Sale Sold out

Manufacturer

Electra

Brand

Cocoa Mel

Shipping

DELIVERY - Cocoa 5 KG CHOCOLATE MELANGER

Cocoa 5 KG is home delivered via Air Cargo only.

Delivery time is 7-10 days.

COST INCLUDES - SPECIAL NOTES

The advertised is DAP price. Cost + insurance + Freight Charges + Door Delivery

Import Duty , local tax, clearance is paid / taken care by customers.

Voltage

110V/60Hz(Single Phase)
220V/50Hz(Single Phase)

440V/50Hz(Three Phase)

Available in 220 V / 110 V / 440 V
Available in Single / Three Phase

Supporting Stand Stainless steel SS 304 grade body
Empty Drum Volume Exhaust System for heat extraction
Heavy Duty Gear Box with Speed Controller
Adjustable Controller (to control from 0 RPM to 140 RPM)

Heavy Duty motor support 80 Hrs.
Continuous Grinding
SS 304 Double scrapper arm for efficient grinding
Powerful 1 HP, CE certified motor
Empty Full Drum Volume -16 inches height - 16 inches deep
1HP motor with speed controller unit
Built in MCB

    Cocoa nib grinder
    Cocoa butter grinder
    Nut Butter Grinder

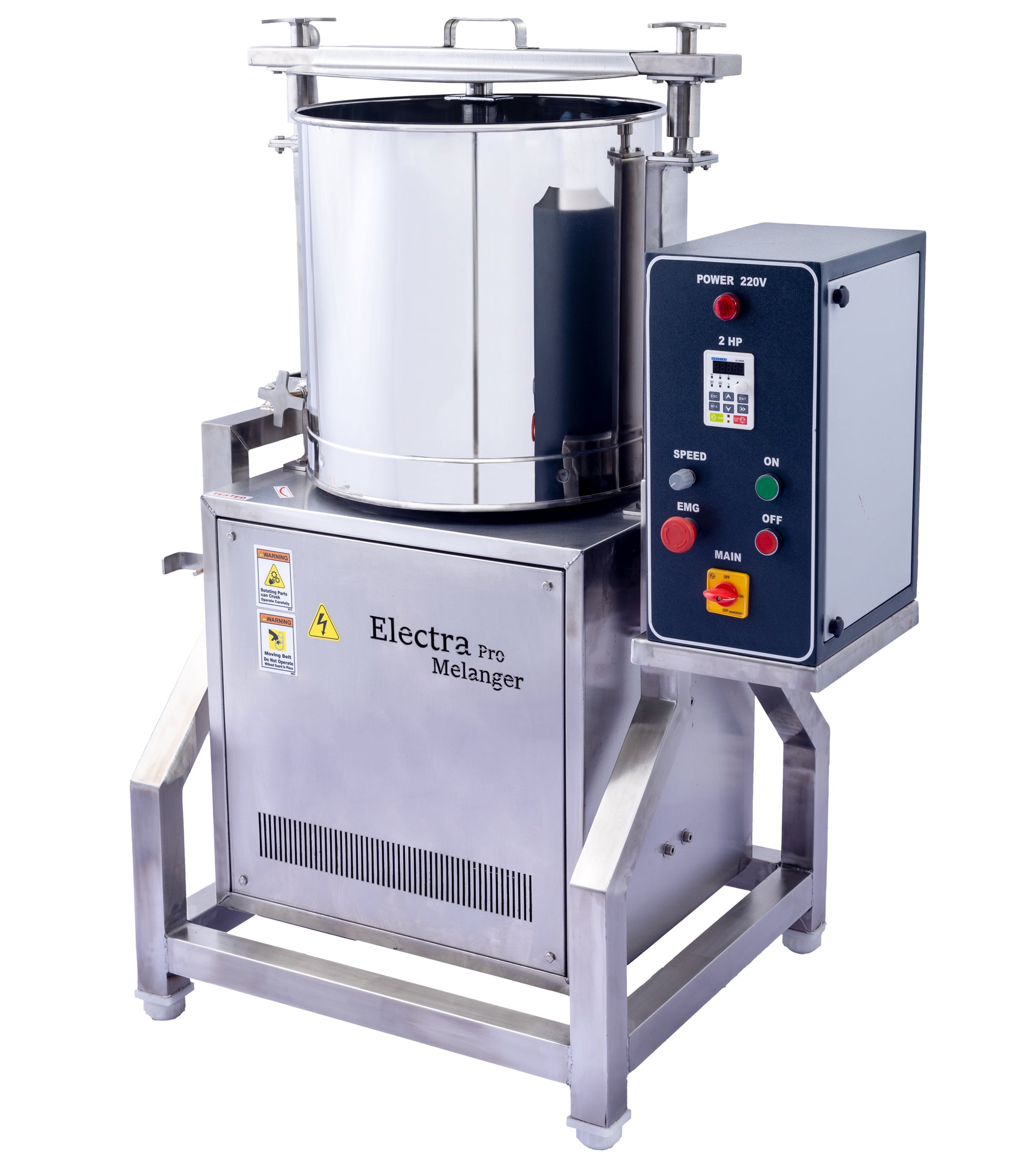

    DETAILS - Cocoa 20 KG COMMERCIAL CHOCOLATE MELANGER

    The ideal machine for cocoa process and spread process and different utile grinding needs.

    This Cocoa Commercial Chocolate Melanger can grind up to 20kg of cocoa bins. The Premium model has automatic Titling feature makes it unnecessary to have to lift the vessel or drum to pour out the contents, reduces man power and avoid straining yourself. Cleaning is a breeze, simply pour water, run the melanger for a couple of seconds and pour out the water. It almost cleans itself. Solid 100% stainless-steel body provides class, strength and durability. In addition, this melanger has all the options that make it stand out like powerful motor, gear drive, exhaust, black granite stone for long life and fine quality internal and external mechanism.

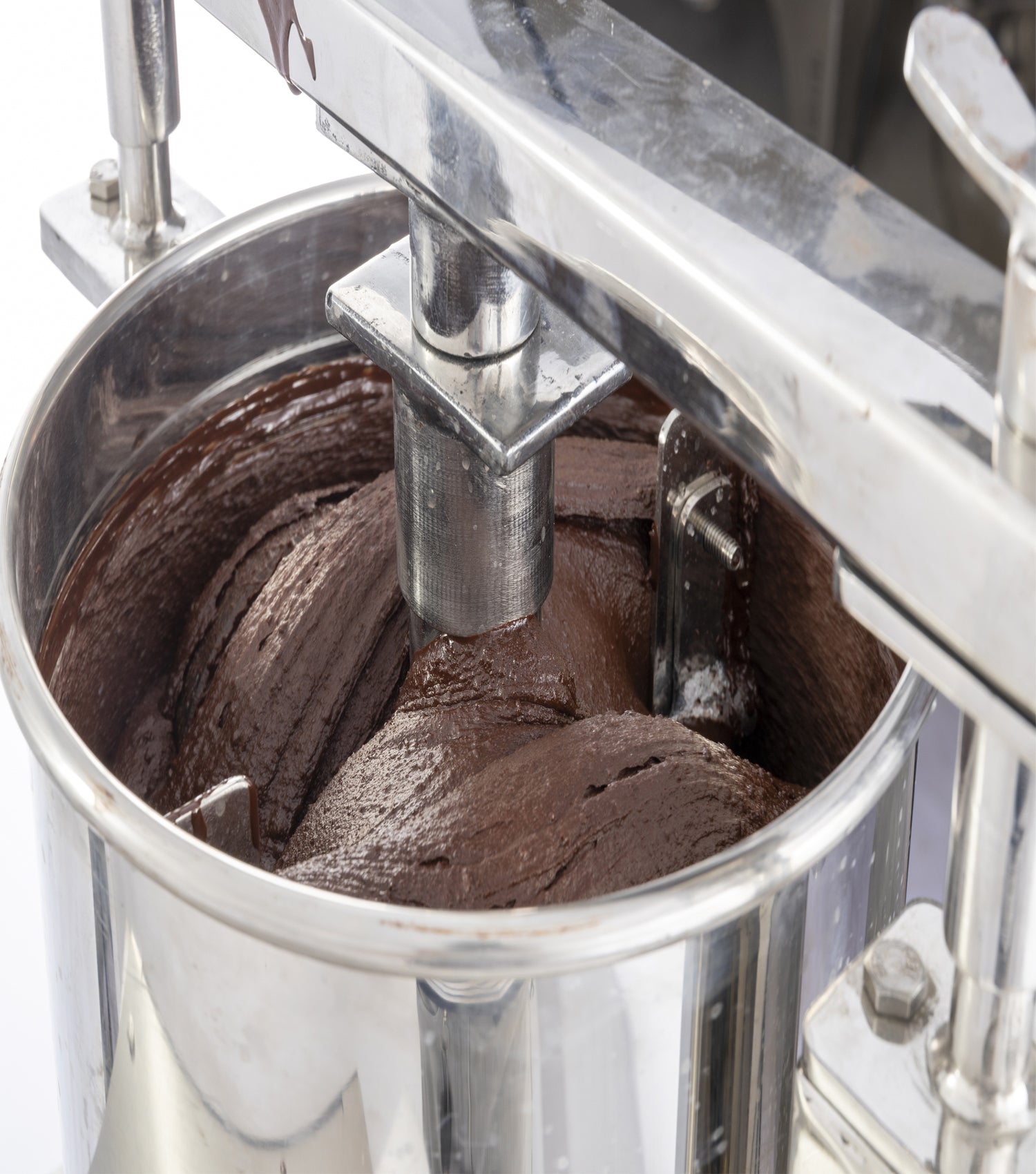

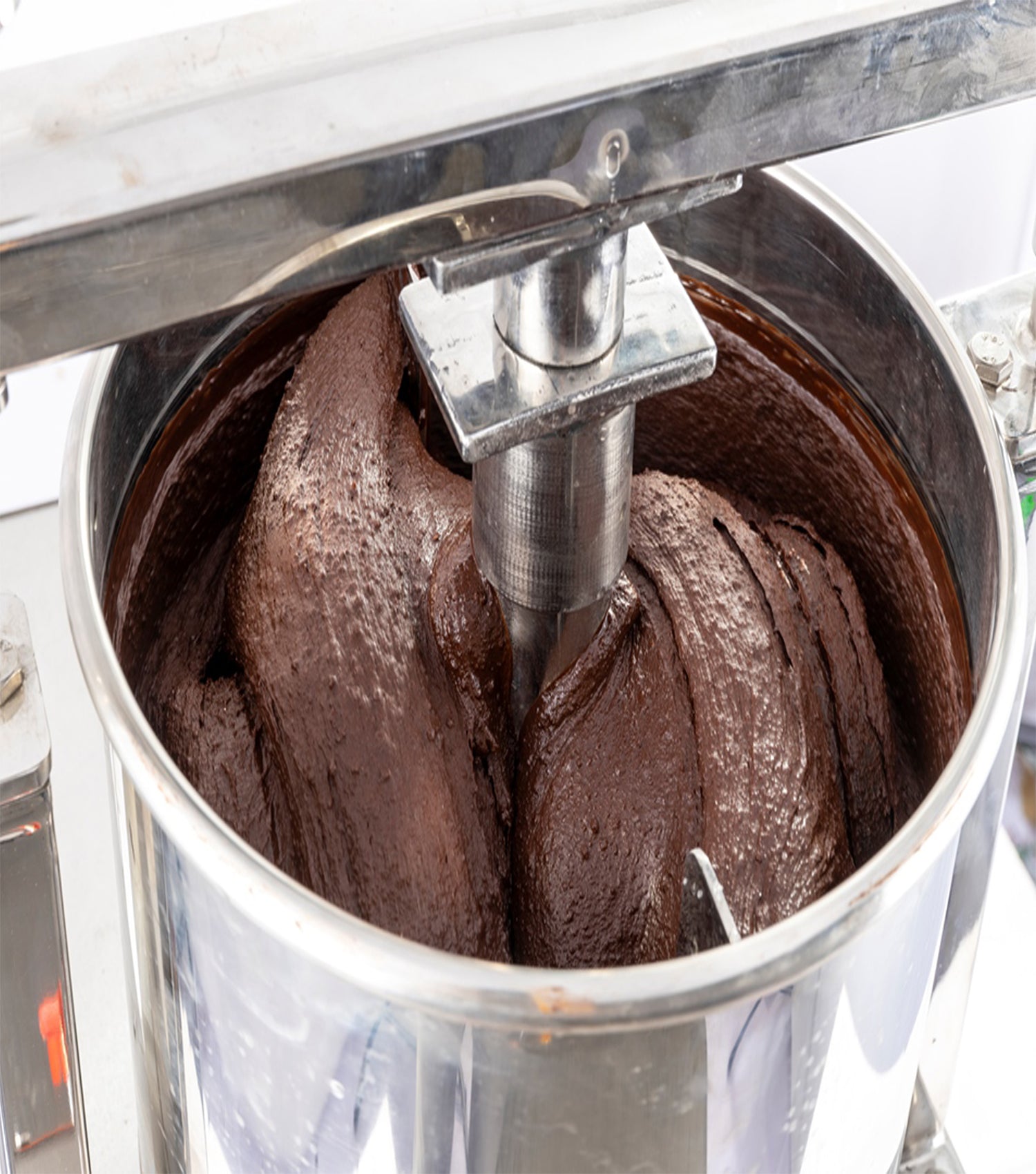

    Double granite roller stones with double scrapper that rotate over a granite base. This creates quick tremendous shear that reduces the cocoa nibs to fine chocolate liquor and nuts into paste with a particle size of the order of lesser than fifteen microns.

    Speed controller and control panel is provided as Standard with the unit, and comes with built in electrical MCB protection. This unit helps you to control the machine speed for various process and adjust the quantity of ingredients. This is noticeably helpful for you to differentiate your method from others, and make your recipe and processing unique to yourself. This machine comes with extra feature with timer which time can set for grinding

    This wonderful stone melanger grinder is that the excellent companion to your endeavor. We have made several key enhancements to the grinder to make it perfect for Chocolate, nut butters, Mexican masa, cosmetics and other food processing. Our stone melangers can be used to make Marcepan from almond, Mesa from corn, coconut paste, Gianduja from hazel nuts, Pistachio and cashew butters, spread from bean seeds, flax seeds paste, Sphagnum moss for facials, Hummus from boiled chick peas, rice batter from rice, Quinoa and lots of Associate in Nursing different grinding application.

    Our Cocoa Commercial Melanger 20 is a US-made, custom-built, all-Stainless Steel, tilting refiner that is plug and play ready. It has a maximum capacity of 20 kgs per batch. This professional, space-efficient model is a low-impact refiner for making fine chocolate, nut and seed butters from scratch. Low-impact refining allows for the maximum retention of nutritional value while at the same time preserves the shelf-life of a product.

    The Cocoa Melanger 20 features high-quality, all-natural granite stones that refine particle size down to less than 20 microns. This space-efficient machine creates great shear, enabling a faster working time. In addition, the processing efficiency allows for maximum retention of the beans’ inherent qualities, therefore honoring their true potential to express involving the use of (fine flavor) profiles.

    The Cocoa Melanger 20’s high-efficiency, continuous duty motor is engineered specifically to run 24/7 days year-round without the risk of overheating. No external cooling fans are needed. The machine can be safely operated for long refining times at varying speeds due to a unique motor design. The variable frequency drive system saves electricity and runs the machine efficiently. This system meets or exceeds the latest international energy efficiency standards.

    A fine-tension controller adjusts stone pressure during the refining/conching stage allowing makers greater control over the finished product. The machine can be operated by a single person. Door-to-door shipping worldwide.

    FEATURES Cocoa 20 KG CHOCOLATE MELANGER

    • Long, trouble free operation with GEAR box and Motor directly mounted.
    • High grade rust proof Stainless steel drum with food grade plastic components.
    • No Plastic components in contact with food grade stainless Steel hub as a standard.
    • Solid and heavy stainless steel frame
    • Motor does not get overheated even under long and heavy use

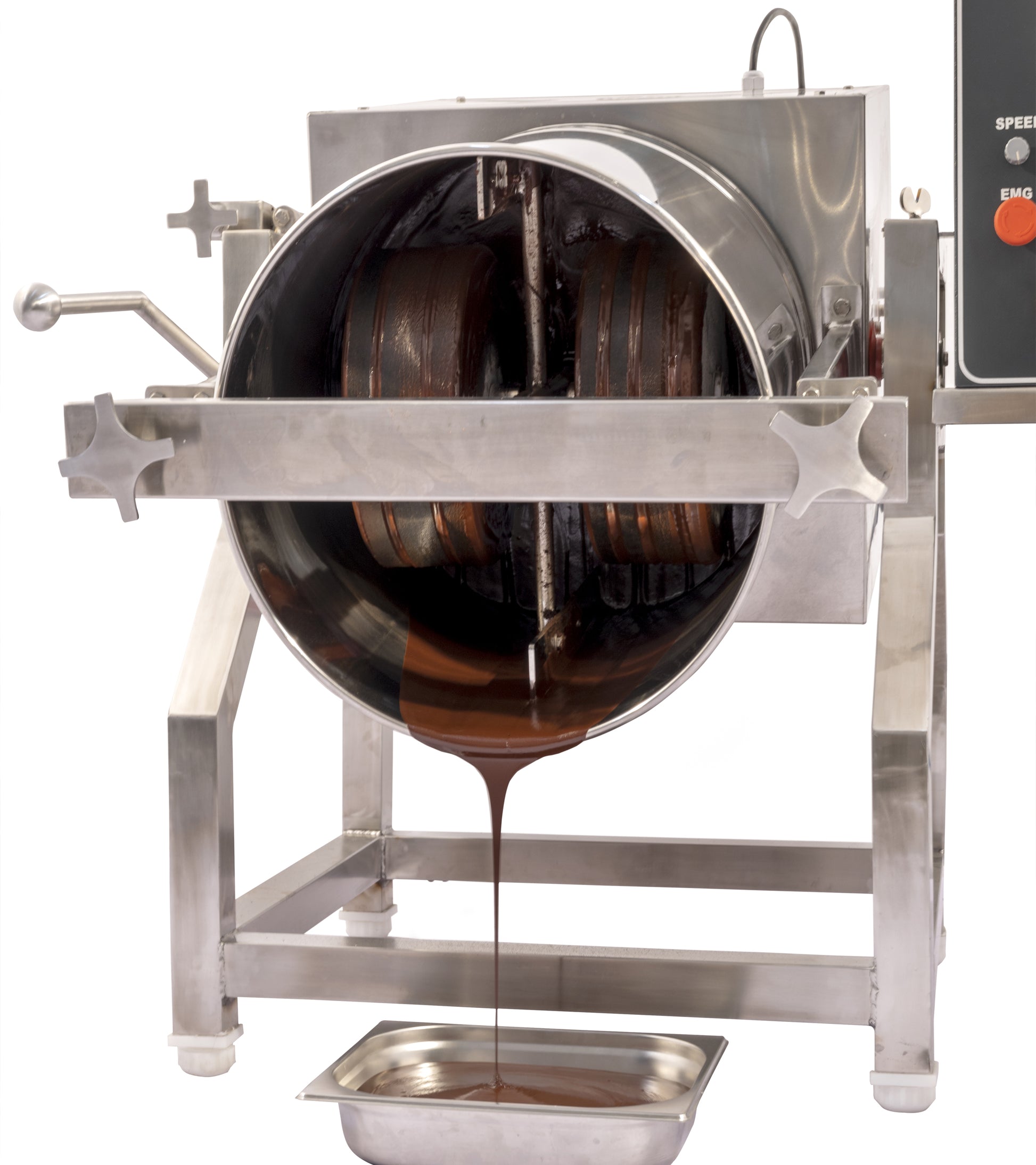

    • Tilting feature lets you to tilt the entire unit for easy removal of contents and easy cleaning
    • Real and naturally occurring Black Granite Stone is used to prevent chipping or thinning and long life. No artificial stones.
    • No need to buy any add on and attachments - all are included
    • Multipurpose machine that can be used with various food ingredients
    • CE Certified Motor
    • Speed controller drive made by the world leader and CE & UL certified
    • Ergonomic design
    • Machine can be operated without the lid on if necessary. Lid can be removed while running.
    • Detachable Cylindrical Granite Roller Stones assembly can removed for easy cleaning
    • Spring loaded adjustable load system for efficient grinding and control
    • We have readily available spare parts that can ship worldwide and give you peace of mind.

    SPECIFICATIONS OF Cocoa 20 KG CHOCOLATE MELANGER

    • SKU : CMC020
    • Capacity : 20 KG.
    • Motor in Hp : 1 HP.
    • Voltage Availability : 110V/220V/440V.
    • Motor Type : Crompton.
    • Inverter Type : Crompton.
    • Drum Size is 16*inch deep and 16*inch height.
    • Gear Box is available.
    • Motor Speed : 140 RPM.
    • Speed Controller is available.
    • Weight is Approximate - 150 Kg.

    DELIVERY - Cocoa 20 KG CHOCOLATE MELANGER

    • Cocoa 20 KG is home delivered via Sea Cargo only.

    • Dispatch Time 10 -15 Business Days.

    • Delivery time is 3-4 Weeks.

    COST INCLUDES - SPECIAL NOTES

    • The advertised is CIF price. Cost + insurance + Freight Charges.

    • Import Duty , local tax, clearance is paid / taken care by customers.
